01

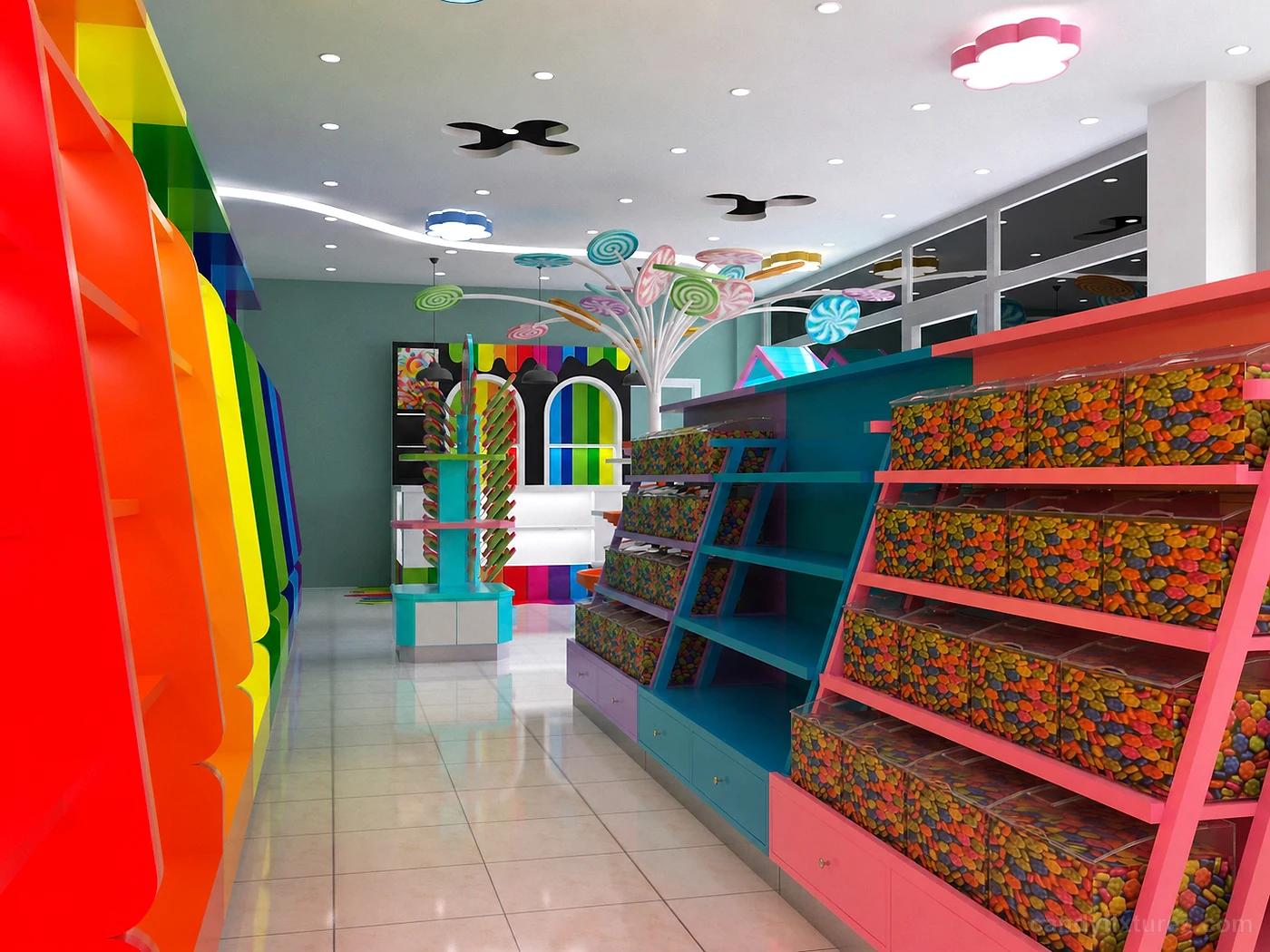

Reading the layout
Use the colour blocks to identify ranges without changing the product-location logic. Customers and staff should still recognise the layout when graphics change.
02
Developing your own version

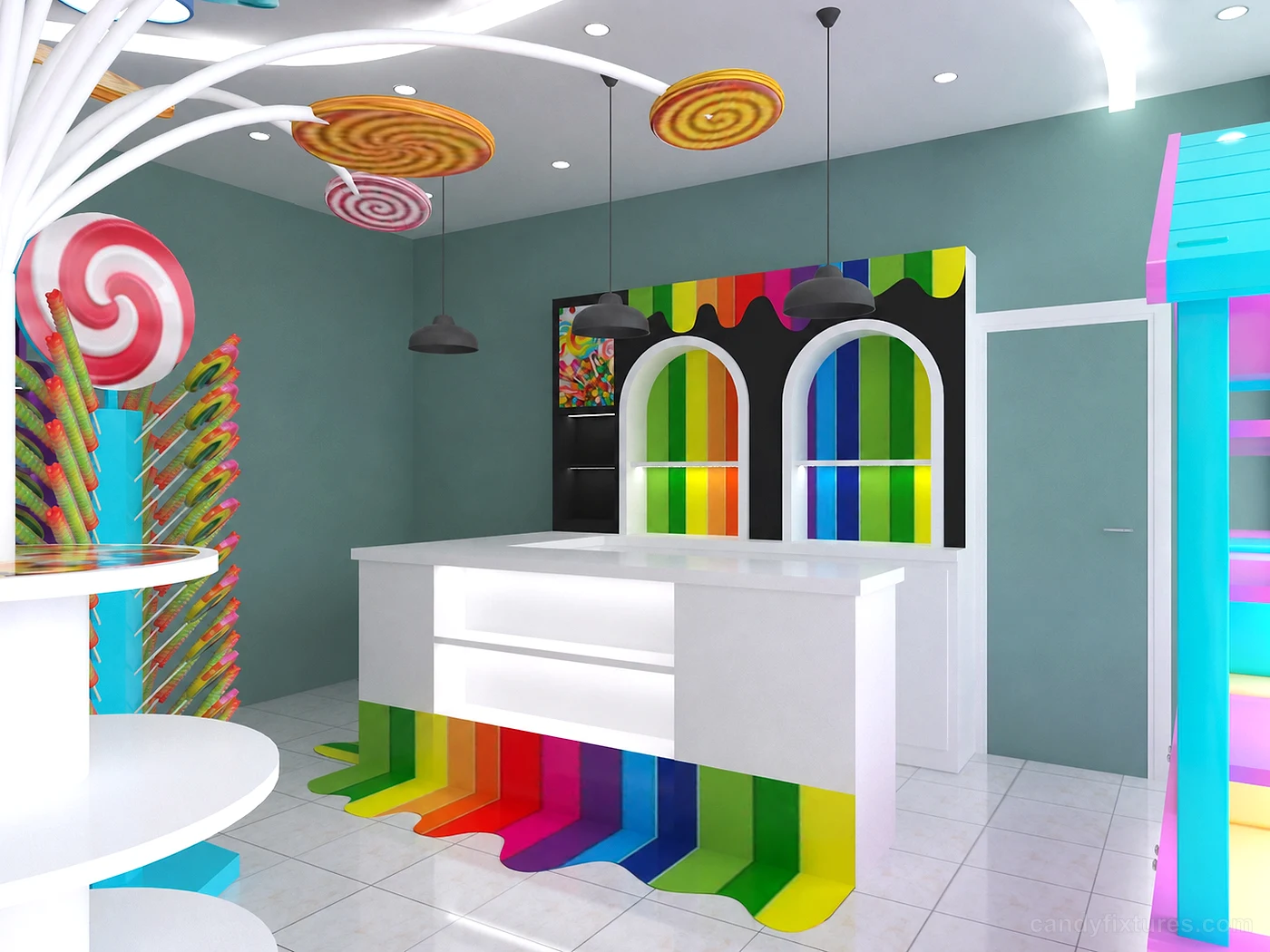

Confirm each bay's real shelf dimensions and the depth of the centre run. Leave the entrance and counter approach open in the occupied plan.
Planning point
- Use the colour blocks to identify ranges without changing the product-location logic. Customers and staff should still recognise the layout when graphics change.
